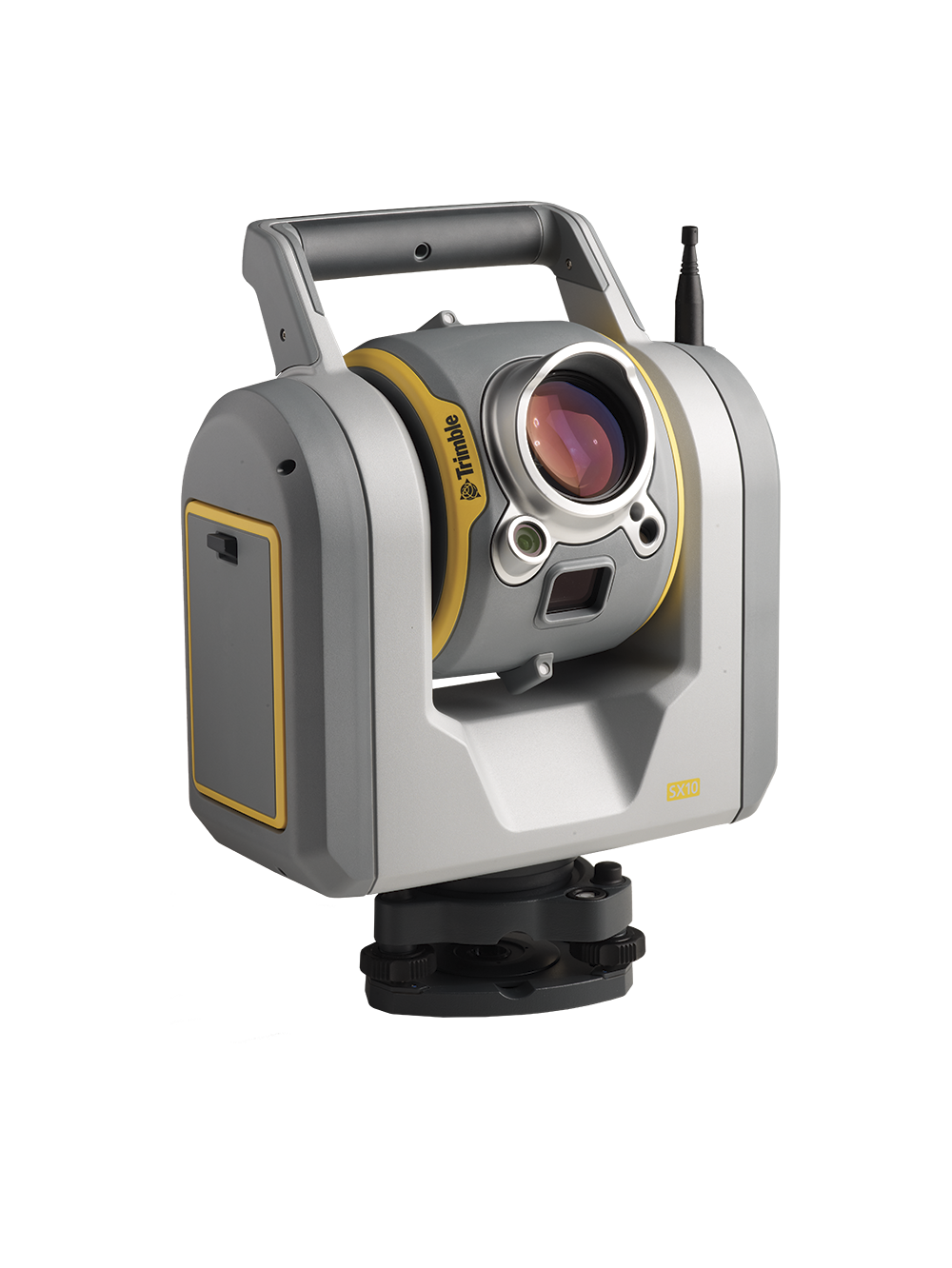

Trimble SX10
Scanning Total Station




Change the way you work with a combination of surveying, imaging and high-speed 3D scanning — all in one instrument.





OVERVIEW

This new, versatile solution is capable of collecting any combination of high-density 3D scan data, enhanced Trimble VISION imaging, and high-accuracy total station data, allowing you to capture exactly what you need, saving you time and money on every job.

Trimble’s new Lightning 3DM enables the SX10 to capture both high-accuracy total station measurements and true high-speed 3D scans together in a single instrument, providing a higher level of accuracy and measurement performance than ever before.




BENEFITS

  • Trimble’s Lightning 3DM enables both high-accuracy total station measurements and high-speed scanning capability
  • Improved Trimble VISION technology allows for fast and easy capture of high-resolution site imagery
  • Complete integration with familiar workflows of Trimble Access and Trimble Business Center software
  • Faster target identification in dark or harsh environments with Target Illumination Light - TIL





SPECS

Angular accuracy: 1"
EDM accuracy: 1 mm + 1.5 ppm Prism / 2.0 mm + 1.5 DR
Scanning speeds of up to 26,600 Hz at ranges up to 600 m
The smallest spot size in the industry — a mere 14 mm at 100 m
Datasheet: Datasheet - SX10 Scanning Total Station





VIDEO

sx10



Contact us today for more details on this product or to schedule a demonstration:
